Pole
The AirBin - Pole is an integrated temperature control and air purification system designed for outdoor public spaces. It is a specialized environmental control system that utilizes advanced water mist technology to simultaneously lower the ambient temperature and control air pollution. This system is a powerful, yet aesthetic, solution to critical urban and industrial environmental challenges.
Technology
The core is a multi-functional system that operates on Intelligent Climate Control Algorithms and real-time air quality monitoring. It converts water into an ultra-fine spray with a droplet size of 20 - 50 microns under high pressure (120 Bar). These small droplets ensure enhanced coverage and dispersion, significantly increasing cooling and pollutant suppression efficiency across a larger area. The created mist is powerful enough to overpower high wind or airflow, ensuring effectiveness in challenging environments.
Sensors
The system employs a suite of advanced sensors for proactive environmental management: Temperature, Humidity, PM2.5, PM10, Odour detection, and Wind direction and speed.
Controls
The AirBin - Pole provides precise, automated control over key environmental factors: Temperature reduction, Dust and pollen control, Odour neutralization, and Automated climate management. For odour control, it automatically sprays an environment-friendly, bio-degradable Anti-odour chemical (diluted with purified water) to quickly neutralise compounds like hydrogen sulphide, ammonia, and mercaptans.
Utility
The AirBin - Pole is perfect for streets, parks, outdoor events, and public spaces requiring robust climate control and air purification. It is an effective measure for heat reduction during summer and provides significant management for dust, pollen, smog, and particulate matter in polluted corridors.
Key Technical Specifications
|
|
|
|---|---|
|
Working Pressure:
|
120
|
|
Water Capacity:
|
500 Liters
|
|
Water Consumption:
|
15 Liters Per Minute
|
|
Throw Range:
|
15-20 meters
|
|
Droplet Size for Odour Control:
|
20-50 microns
|
|
Electricity Consumption:
|
4 Kilowatt per Hour
|
|
Total Height:
|
7000 Millimeters
|
|
Protection:
|
Dry Run Protection (auto cut off)
|
Focusing Power for Directed Coverage. This variant is engineered to project a powerful, semi-circular curtain of mist and pollutant suppression, maximizing its impact along a specific axis. With a fixed $\mathbf{180^\circ}$ rotational arc, it provides highly efficient, targeted coverage, making it ideal for managing pollutants along the side of a structure or a specific stretch of space.
Linear Path Purification Specialist. Designed for high-speed, linear environments, this specialized variant utilizes an oscillating, left-to-right sweep mechanism. Its throw is precisely calibrated to efficiently cover the width of a road, highway, or transport corridor, actively combating vehicular pollution, suppressing road dust, and providing a cooling microclimate for commuters.
AirBin - Pole can lower the temperature is a specialised system that uses water to create a fine mist or spray, which is then dispersed into the surrounding environment. When the water is released, it undergoes rapid evaporation, absorbing heat from the air and effectively lowering the temperature. Small droplets ensure enhanced coverage and dispersion, thus covering a more significant area and increasing the cooling efficiency.
AirBin - Pole can control air pollution by creating a fine mist or spray dispersed in the environment. The created mist overpowers the wind or airflow, thus proving effective in areas where the wind flow is high. It provides a significant dust, pollen, smog, Particulate matter, heat control management
AirBin - Pole can Control Odour by spray Anti - H₂S chemical diluted with purified water after connecting it with water tank placed underneath. It converts the solution into a fine spray with droplets size of 20 - 50 microns. It will quickly neutralise hydrogen sulphide, ammonia, amines, mercaptans, skatole, sulphur dioxide, acetaldehyde, cadaverine, etc. The properties of the chemical is environment friendly and bio-degradable.

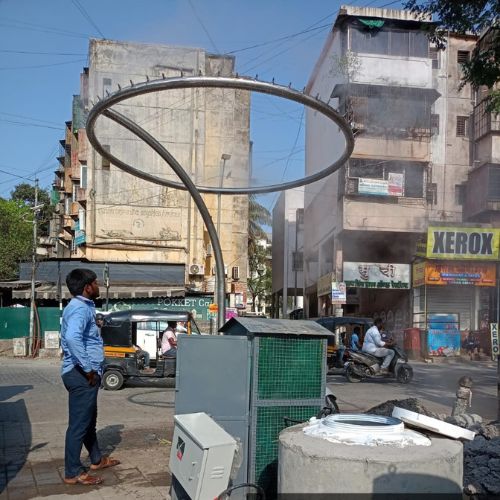

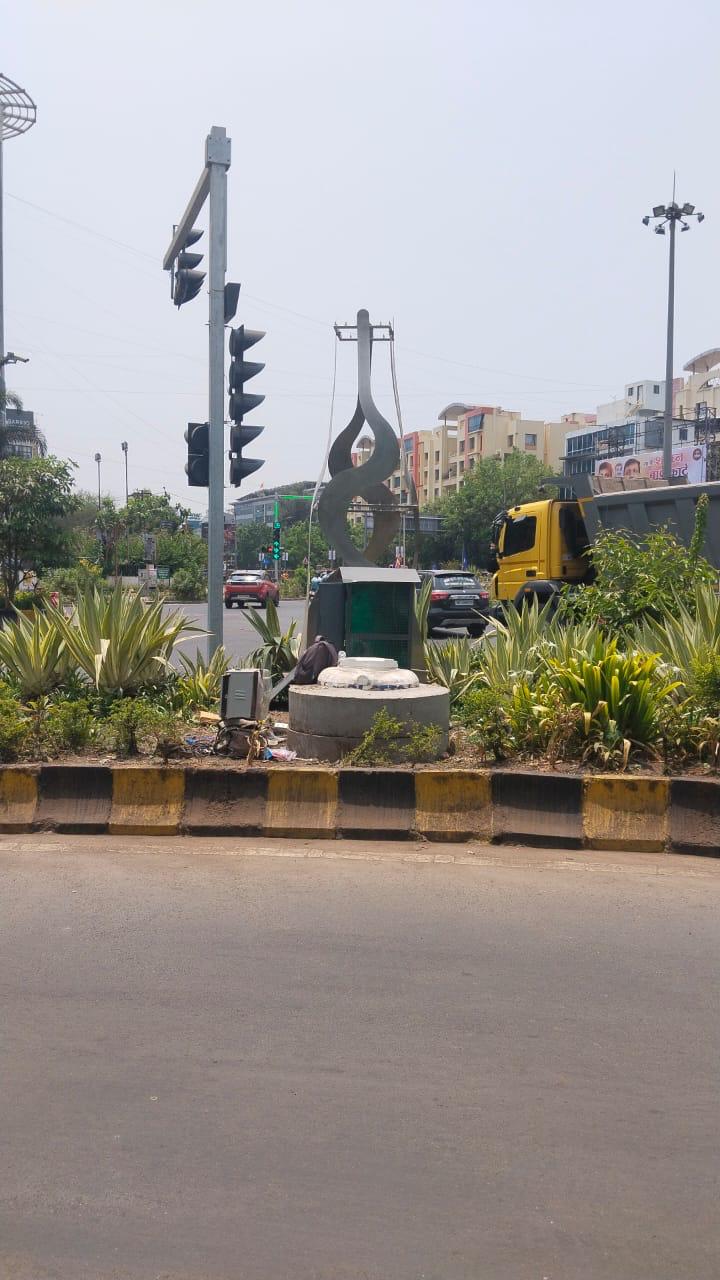

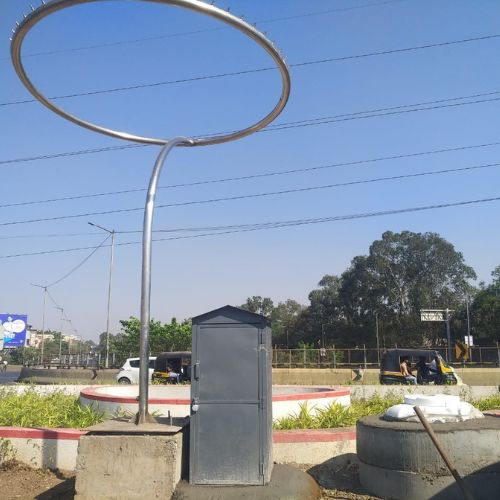

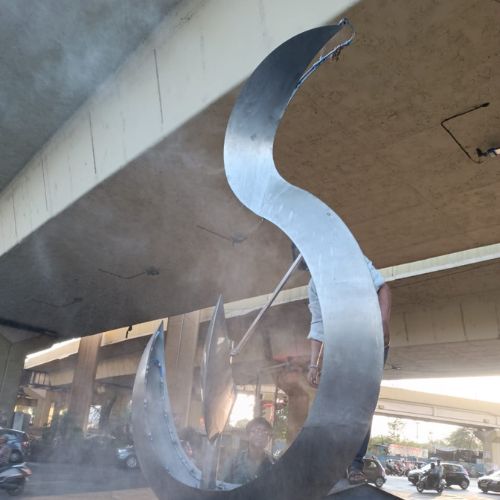

Gallery
