RECD
The AirBin - Retrofit Emission Control Device (RECD) is a custom-designed system engineered to drastically control and reduce hazardous gaseous pollutants released by diesel generators (DG sets). Our device is essential in combating air pollution, proven to reduce DG set emissions by up to 95%. Built and tested to comply with the stringent standard norms set by the National Green Tribunal (NGT), the Central Pollution Control Board (CPCB), and the Ministry of Environment, Forest, and Climate Change (MoEF & CC) , the AirBin - RECD is a robust and efficient solution. It is designed for easy installation on both new and existing DG sets to control Particulate Matter (PM), Carbon Monoxide (CO), Nitrogen Oxide (NOx), and other pollutant particles.
Technology
The AirBin - RECD employs a filterless technology that functions as a sophisticated filtration system, specifically targeting and filtering harmful particles. This technology is a clear air solution that eliminates the need for routine filter changes and prevents choking. The device's manufacturing design utilizes a stainless steel box (can) that is mounted directly onto the generator's exhaust system. A key advantage of our technology is the presence of minimal to zero back pressure, which is crucial for ensuring the safety and longevity of the diesel engine itself. The system is built to provide constant performance without requiring active regeneration and remains unaffected by exhaust temperature.
Sensors
While the AirBin - RECD's design prioritizes a simple, efficient, and sturdy construction for continuous pollutant removal , its filterless nature ensures sustained, consistent operation without the need for complex, active monitoring of filter status. The system is built to maintain the health and safety of the DG set by ensuring minimal back pressure. We also conduct rigorous testing on all key parameters before installation to guarantee compliance and performance.
Controls
The AirBin - RECD is designed to be a set-and-forget solution, requiring minimal maintenance after installation. It integrates seamlessly into the existing setup, as it is installed after the DG exhaust (muffler/silencer), with no modifications required to the original exhaust system. The product is completely weatherproof and resistant to a wide range of in-use DG sets. Unconditional and remote installation is also possible.
Utility
The primary usage of the AirBin - RECD is to control hazardous gaseous pollutants released by diesel generators, helping industries meet strict emission guidelines. It is a trusted technique that is effective at reducing more than 90% of pollutant particles in specific cases. By installing the RECD, your industrial DG set becomes more efficient and reliable. Furthermore, the separated Particulate Matter can be collected and utilized as a high-value raw material in the paint, dye, and plastics industries, turning a pollutant into a resource and eliminating the need for disposal and secondary contamination. The device is suitable for all industrial diesel DG sets
Comprehensive Multi-Stage Filtration and Purification
The Mild Steel Emission Control Device is our standard and highly effective variant, specifically engineered for rugged and long-duration use in industrial environments. The design is characterized by its robust features and high efficiency. The variant's core purpose is to provide a customized emission control solution that can tackle various types and levels of emissions. The device is power-dependent; while its core specifications (material, frequency, voltage) are fixed, the final unit is scaled and manufactured based on the specific power output of your DG set ("Based on the unit"). This ensures perfect compatibility and maximum pollutant reduction for your specific generator, making your equipment more reliable and compliant with environmental norms.
Model specifications and DG set details
- DG Set Rating: 1–50 KVA
- Power Output: 40 KW / 48 HP
- Dimensions: 2278 (L) × 900 (W) × 1332 (H) mm
Model specifications and DG set details
- DG Set Rating: 51–100 KVA
- Power Output: 80 KW / 96 HP
- Dimensions: 3300 (L) × 1300 (W) × 1700 (H) mm
Model specifications and DG set details
- DG Set Rating: 101–300 KVA
- Power Output: 240 KW / 289 HP
- Dimensions: 3400 (L) × 1400 (W) × 1850 (H) mm
Model specifications and DG set details
- DG Set Rating: 301–500 KVA
- Power Output: 400 KW / 482 HP
- Dimensions: 5600 (L) × 2000 (W) × 2300 (H) mm
Model specifications and DG set details
- DG Set Rating: 501–800 KVA
- Power Output: 640 KW / 772 HP
- Dimensions: 4340 (L) × 1763 (W) × 2095 (H) mm
Model specifications and DG set details
- DG Set Rating: 801–1100 KVA
- Power Output: 880 KW / 1062 HP
- Dimensions: 4350 (L) × 1770 (W) × 2139 (H) mm
Model specifications and DG set details
- DG Set Rating: 1101–1500 KVA
- Power Output: 1200 KW / 1448 HP
- Dimensions: 6175 (L) × 2286 (W) × 2537 (H) mm
Model specifications and DG set details
- DG Set Rating: 1501–2300 KVA
- Power Output: 1840 KW / 2219 HP
- Dimensions: 6175 (L) × 2494 (W) × 3201 (H) mm
Simple Variant Table
|
|
|
|---|---|
|
Product Name:
|
Emission control device
|
|
Material:
|
Mild Steel
|
|
Power:
|
Based on the DG Set Unit
|
|
Frequency:
|
50 Hz
|
|
Voltage:
|
240 V
|
Usage Scenarios
The Mild Steel Emission Control Device is explicitly used in Industrial diesel DG sets. Its robust construction makes it ideal for facilities requiring continuous power backup and reliable, long-term emission compliance.

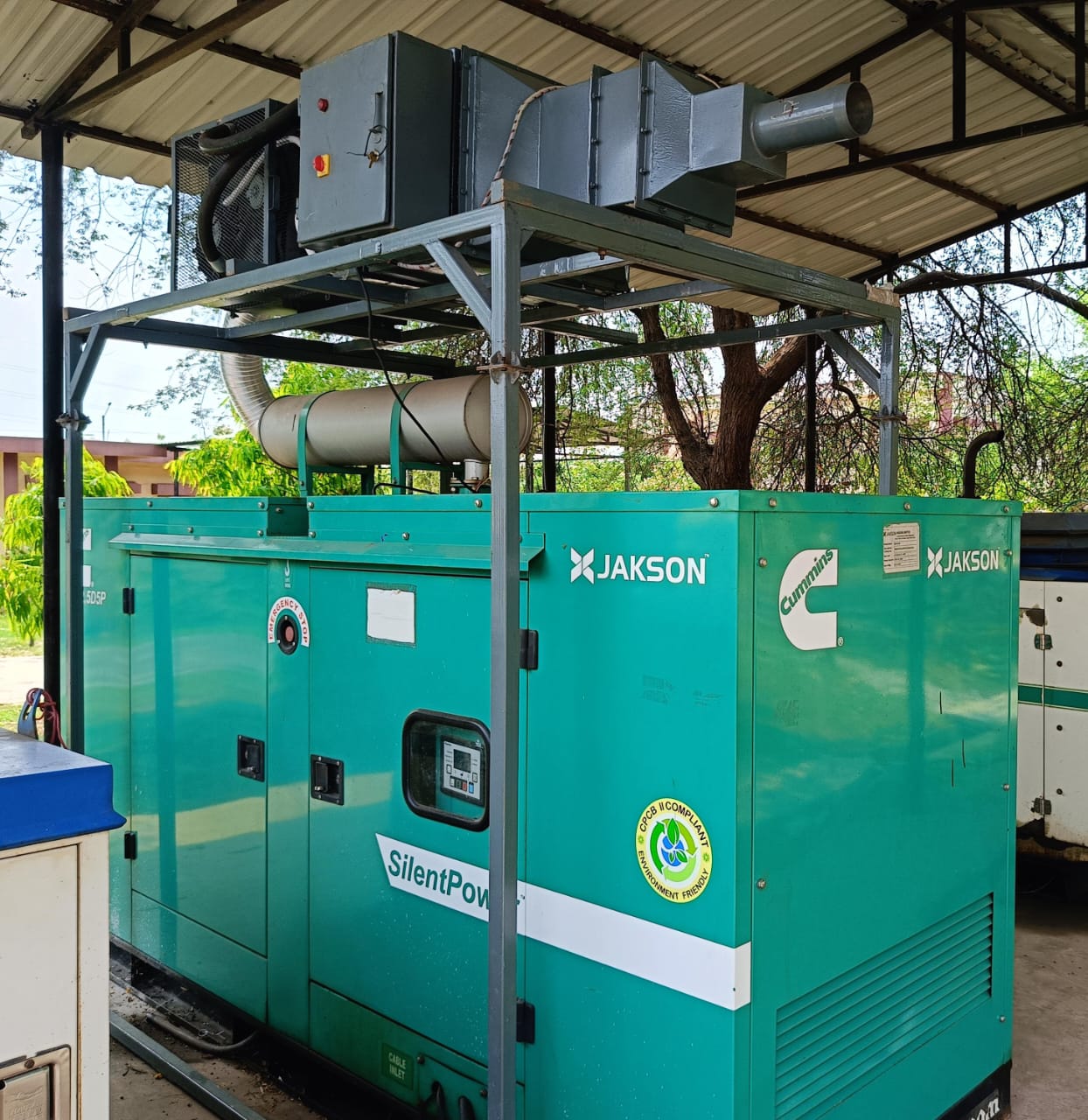

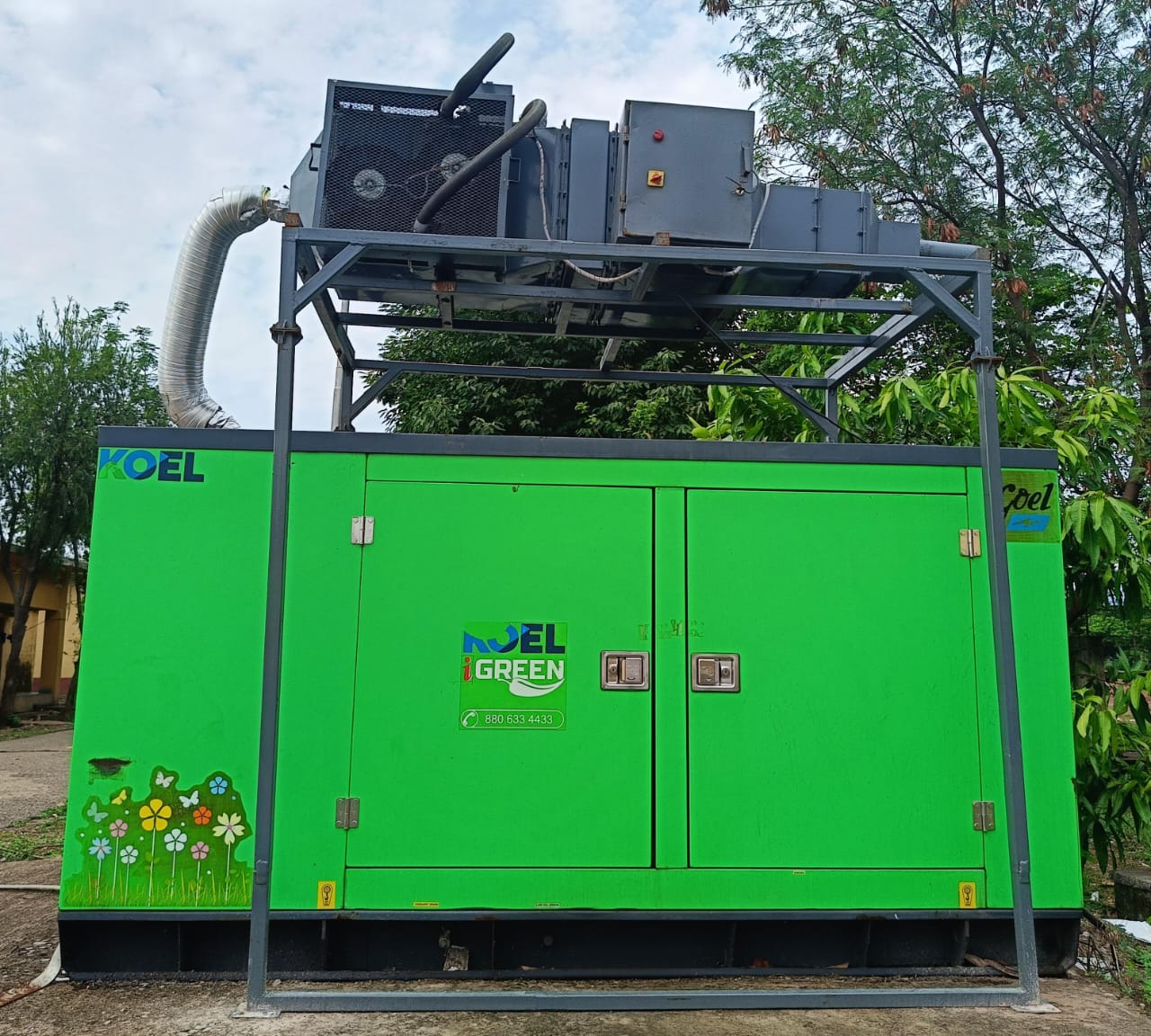

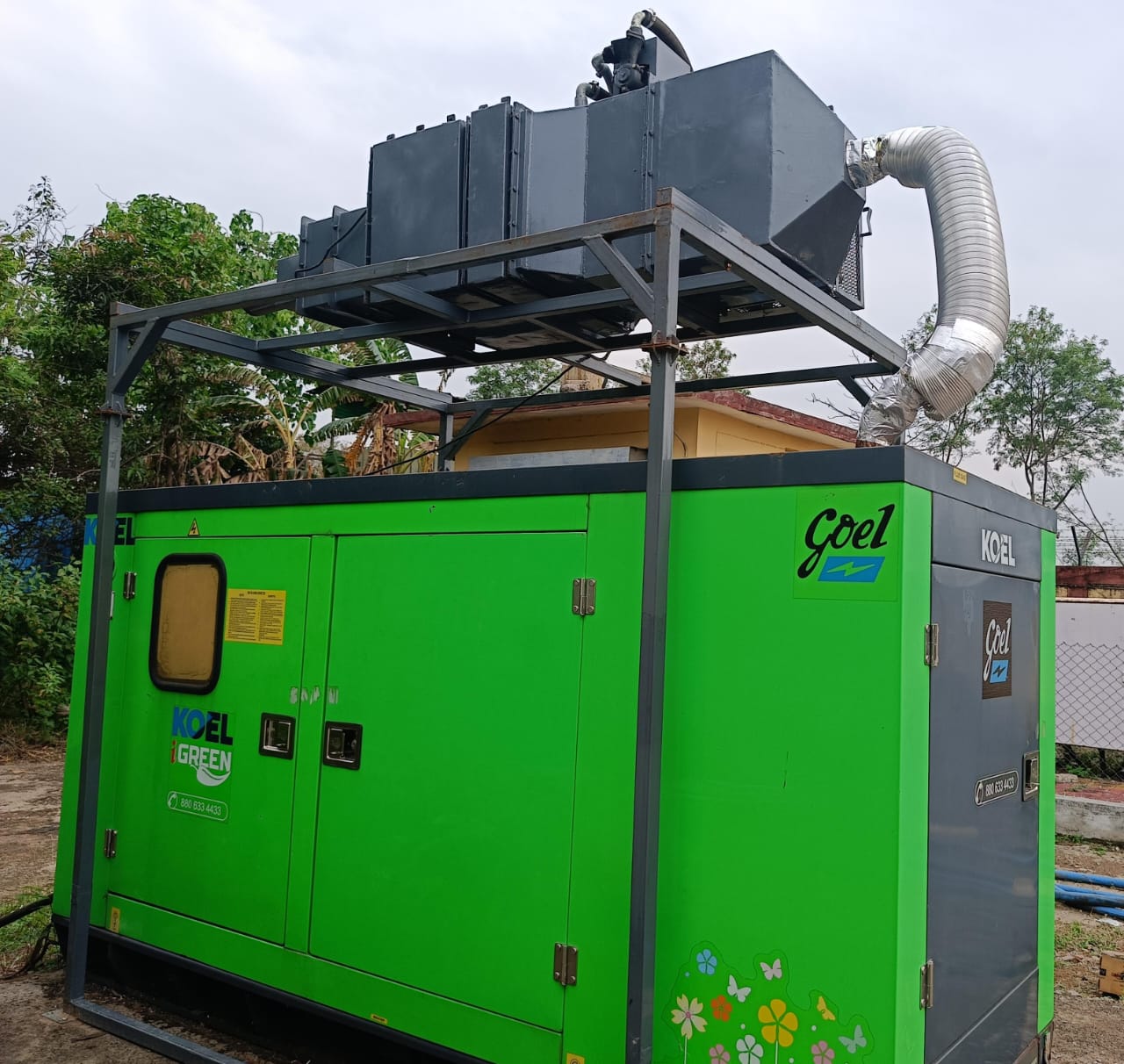

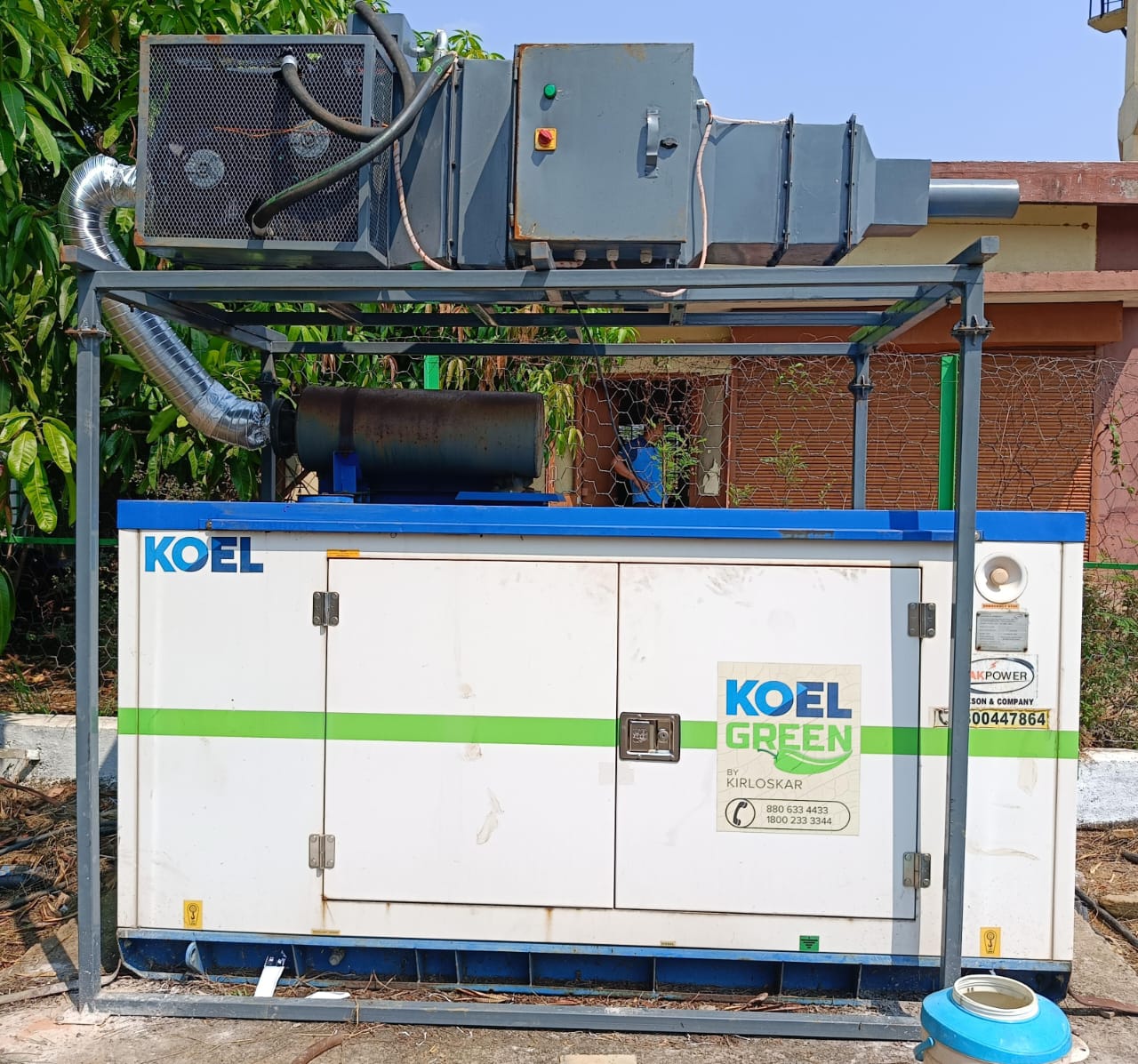

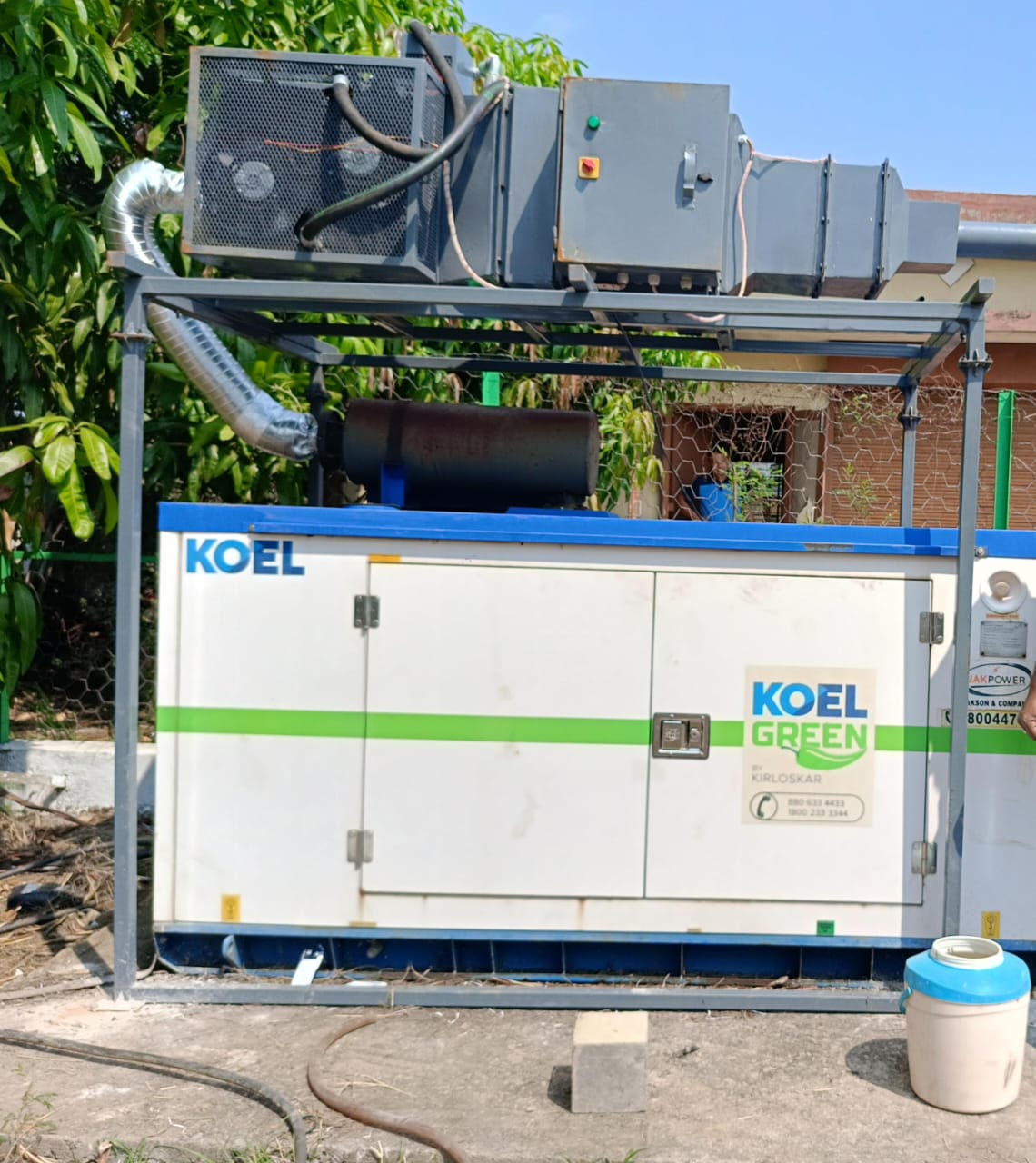

Gallery
